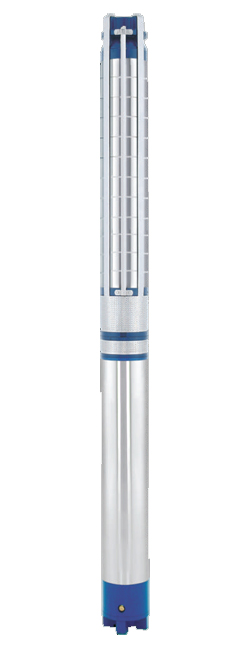

v5-v6-slim-submersible-pumpset

Applications

20% to 30% less power consumption.
40 Feet Hear per stage in V-6 submersible pump set.
Wide voltage ?uctuation capacity of motor.
Higher efficiency.
Very good wear resistance of components to give longer life to pump set.
High capacity of thrust bearing, which gives longer life to motor as well as its winding.
Durability of components, strict quality control & computerized testing set up give right product to customers.
We provide one year warranty against any manufacturing defect.

Range of HP	3 to 17.5
Range of Head in meter	10 to 345
Water Discharge & LPM.	150 to 550
Voltage range for Final Result	300 to 415
Overall efficency	Mini. 25%, Max. 38%

Name Of Parts	Material Specification.
Motor Body	It is made of S.S. 304 grade material to protect against corrosion and to provide rigid construction to support other parts of the body.
Winding Wire	It has high insulating capacity.
Copper Rod	EC grade as per ISI standerd.
Pump Shaft	It is made of S.S. 410 grade material to perform longer life.
Motor Shaft	It is made of S.S.410/431 grade material to perform longer life.
Motor & Pump Bush	It is made of leaded tin bronze LTB- 4 / engineering rubber bush.
