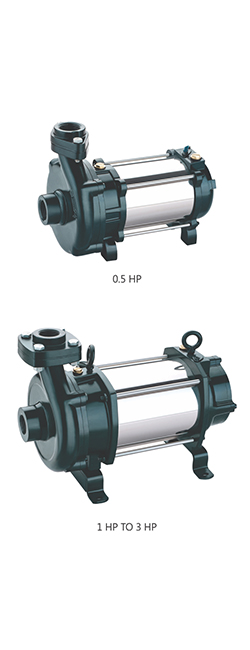

mini-domestic-openwell-pumpset

Applications

20% to 35% less power consumption.
Wide voltage fluctuation capacity of motor.
Higher efficiency.
Very good wear resistance of components to give longer life to pump set.
High capacity of thrust bearing, which gives longer life to motor as well as its winding.High capacity of thrust bearing, which gives longer life to motor as well as its winding.
Durability of components, strict quality control & computerized testing set up give right product to customers.
We provide one year warranty against any manufacturing defect.

Range of HP	0.5 TO 3.0
Range of Head in meter	8.0 TO 40.0
Water Discharge & LPM.	50 TO 550
Voltage range for Final Result	160 TO 220 300 TO 415
Overall efficency	Mini. 20%, Max. 30%

Name Of Parts	Material Specification.
Motor Body	It is made of S.S. 304 grade material to protect against corrosion and to provide rigid construction to support other parts of the body.
Winding Wire	It has high insulating capacity.
Copper Rod	It has high insulating capacity.
Motor Shaft	It is made of S.S.410 grade material to perform longer life.
Motor & Pump Bush	It is made of leaded tin bronze LTB- 4.
Impeller	Made from graded cast iron highly durable.
